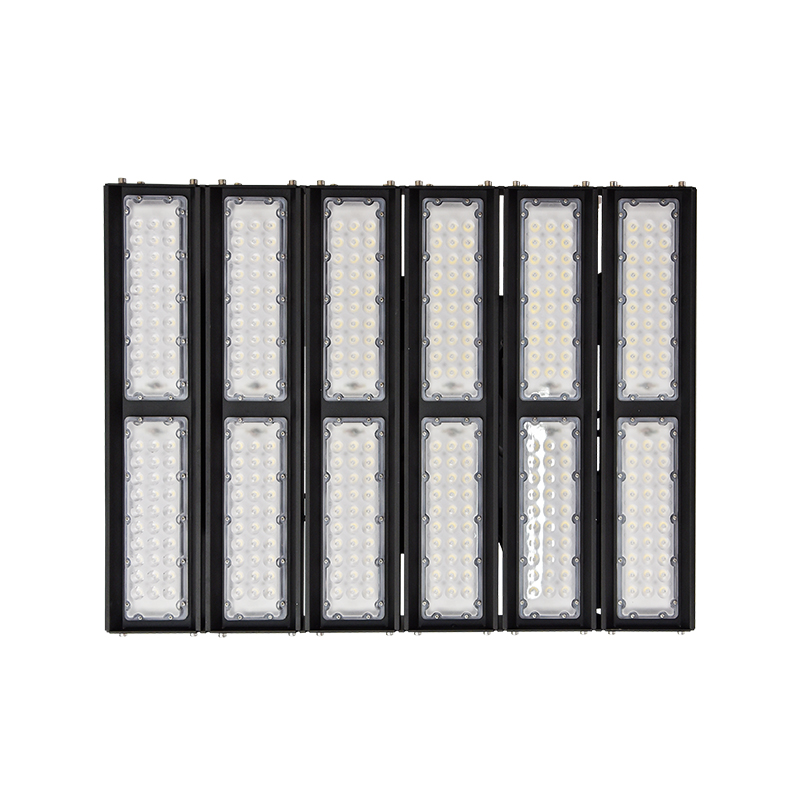

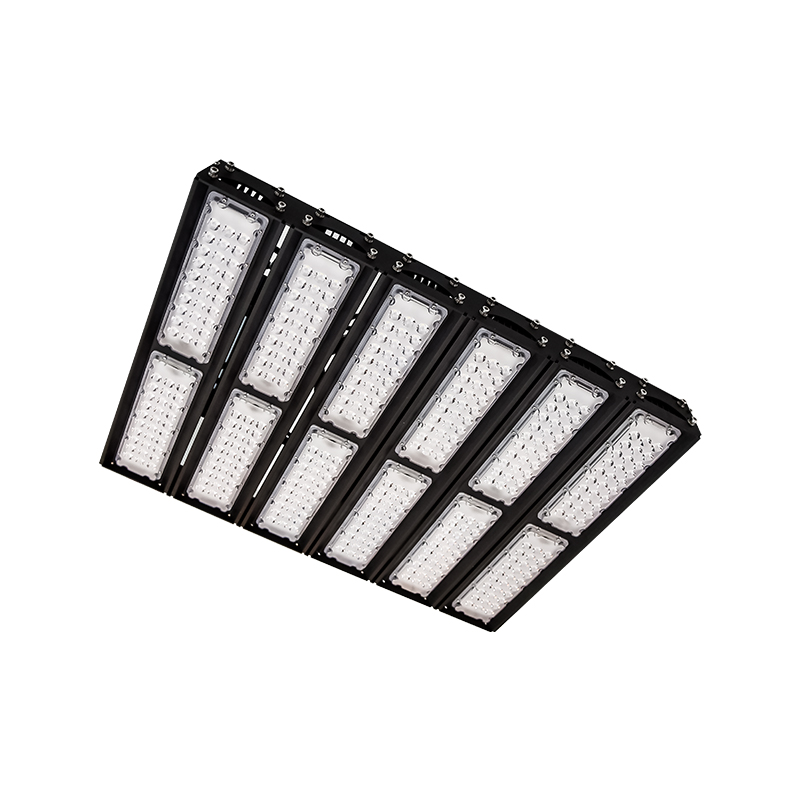

1500w Flood Light

PRODUCT DESCRIPTION:
Stretching aluminium, light combination design. Simple and beautiful appearance,strong heat dissipation,convenient installation and design.

APPLICATIONS:
Factories, shopping malls, hotels, schools, hospitals, warehouses, gymnasiums,wharfs, large building squares, stadiums.

SPECIFICATION FEATURES:
1. Extrudate-shell brings prefect heat dissipation, Simple&perfect appearanc.
2. High-class LED chip 3030 ,5050(40°-120°, 55°*140°),3535(15°,25°)to sure good reliability and consistency.
3. All adopt superior stainless steel nuts.
4. Using efficient&reliable driver to improve Stability and lifespan.
5. High-strength mounting bracket to meet Security performance requires.
6. Special beveling design could avoid light Pollution.
7. Aluminum PCB with high termal conductivity as chip carrier for faster cooling.

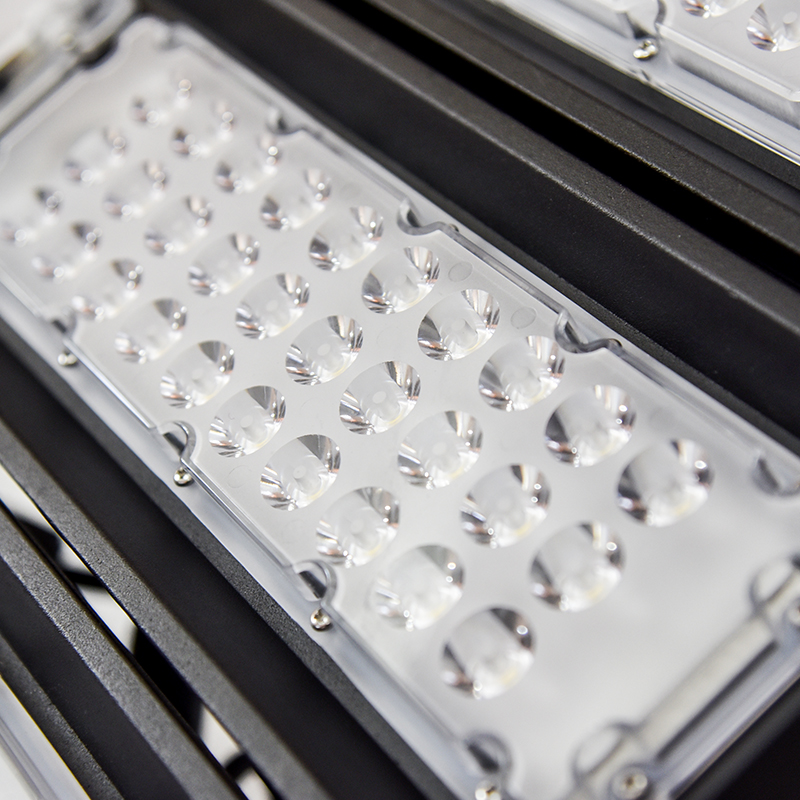

8. Lens module with high transparency could control different bean angles effectively and ensure.
9. balanced light.
10. Module Structure, Compact Sharp,easy Installation.
11. It Has WideApplication Range From Different Luminous Efficiency To Installation Sites For.
12. Meeting Customer Requirements.
13. Long Lifespan Perfect Protective Perfomance Even In Wet Environment.
14. Power Supply With ReliableAnd Safe Performances.

Description
Product Specification

PHOTOMETRICS:

Product size

LED Flood Light Parameter table

I Item description		LEDTG80W007	LEDTG100W007	LEDTG120W007	LEDTG150W007	LEDTG200W007	LEDTG240W007	LEDTG300W007	LEDTG350W007
Input voltage [VAC]		100-277VAC
Input frequency [HZ]		50/60
Input current [A]		0.38(220V)	0.48(220V)	0.58(220V)	0.72(220V)	0.96(220V)	1.15(220V)	1.44(220V)	1.68(220V)
Input wattage [W]		80 ±5%	100±5%	120±5%	150±5%	200±5%	240±5%	300±5%	350+5% i
Power factor		>0.95
Voltage [V]		36
Current(reference) [A]		2	2.55	3.1	3.88	5.1	6.2	7.8	9.1
Power Efficiency		≥90%	≥92%	≥93%	≥93%	≥93.5%	≥93.5%	≥93.5%
Luminous flux [Lm]		10400	13000	15600	19500	26000	31200	39000	45500
Colour temperature [K]		2700-6500K
Colour rendering index [Ra]		>70
Lumen maintenance(2000h) [%]		98
Beam angle [H, V]		40° 60° 90° 120° 55° X140°
lamp		3030,5050
Average life [h]		54000
Net weight [Kg]		2.6set	2.6set	2.6set	4.9set	4.9set i	4.9set	8.9set	8.9set
Gross weight [Kg]		3.6set	3.6set	3.6set	5.9set	5.9set	5.9set	9.9set	9.9set
Quantity [Set]		1
IP	IP66

Item description	EDTG400W00	LEDTG500W007	LEDTG600W007	LEDTG700W007	LEDTG800W007	LEDTG1000W007	LEDTG1200W007	LEDTG1500W007
Input voltage [VAC]	100-277VAC
Input frequency [HZ]	50/60
Inp ut current [A]	1.92(220V)	2.4(220V)	2.88(220V)	3.35(220V)	3.83(220V)	4.78(220V)	5.7(220V)	7.17(220V)
Input wattage [W]	400±5%	500±5%	600±5%	700±5%	800±5%	1000±5%	1200±5%	1500±5%
Power factor	≥0.95
Voltage [V]	36
Current(reference) [A]	10.5	13.5	16	18.5	21	26.2	31.5	39.4
Power Efficiency	≥93.5%
Luminous flux [Lm]	52000	65000	78000	91000	10400	130000	156000	195000
Colour temperature [K]	2700-6500K
Colour rendering index [Ra]	≥70
Lumen maintenance(2000h) [%]	98
Beam angle [H]	40° 60° 90° 120° 55°X140°
lamp	3030,5050
Average life [h]	54000
Net weight [Kg]	11.5set	11.5set	17set	19.8set	23.4set	23.6set	27.1set	34.6set
Gross weight [Kg]	12.5set	12.5set	18.5set	19.3set	25.4set	25.6set	29.5set	38.5set
Quantity [Set]	1
IP	IP66

Item description	LEDTG80W007C	LEDTG100W007	LEDTG120W007C	LEDTG150W007C	LEDTG200W007C	LEDTG240W007C	LEDTG300W007C	LEDTG350W007C
Input voltage [VAC]	100-277VAC
Input frequency [HZ]	50/60
Input current [A]	0.38(220V)	0.48(220V)	0.58(220V)	0.72(220V)	0.96(220V)	1.15(220V)	1.44(220V)	1.68(220V)
Input wattage[W]	80 ±5%	100±5%	120+5%	150±5%	200+5%	240+5%	300+5%	350 ±5%
Power factor	>0.95
Voltage [V]	45
Current(reference) [A]	1.6	2.1	2.5	3.1	4.1	5	6.3	7.3
Power Efficiency	≥90%	≥92%	≥93%	≥93%	≥93.5%	≥93.5%	≥93.5%
Luminous flux [Lm]	8800	11000	13200	16500	22000	26400	33000	38500
Colour temperature [K]	2700-6500K
Colour rendering index [Ra]	≥70
Lumen maintenance(2000h) [%]	98
Beam angle [H, V]	15° 25°
lamp	3535
Average life [h]	54000
Net weight [Kg]	2.6set	2.6set	2.6set	4.9set	4.9set	4.9set	8.9set	8.9set
Gross weight [Kg]	3.6set	3.6set	3.6set	5.9set	5.9set	5.9set	9.9set	9.9set
Quantity [Set]	1
IP	IP66

Item description	EDTG400W007C	LEDTG500W007C	LEDTG600W007C	LEDTG700W007C	LEDTG800W007C	LEDTG1000W007C	LEDTG1200W007C	LEDTG1500W007C
Input voltage [VAC]	100-277VAC
Input frequency [HZ]	50/60
Inp ut current [A]	1.92(220V)	2.4(220V)	2.88(220V)	3.35(220V)	3.83(220V)	4.78(220V)	5.7(220V)	7.1 7(220V)
Input wattage [W]	400±5%	500±5%	600±5%	700±5%	800±5%	1000±5%	1200±5%	1500±5%
Power factor	>0.95
Voltage [V]	45
Current(reference) [A]	8.4	10.8	12.8	14.8	16.8	21	25.2	31.5
Power Efficiency	≥93.5%
Luminous flux [Lm]	44000	55000	66000	77000	88000	110000	132000	1 65000
Colour temperature [K]	2700-6500K
Colour rendering index [Ra]	≥70
Lumen maintenance(2000h)[％]	98
Beam angle [H, V]	15° 25°
lamp	3535
Average life [h]	54000
Net weight [Kg]	11.5set	11.5set	17set	19.8set	23.4set	23.6set	27.1set	34.6set
Gross weight [Kg]	12.5set	12.5set	18.5set	19.3set	25.4set	25.6set	29.5set	38.5set
Quantity [Set]	1
IP	IP66
