BG002B Easy to Replace Led Wall Pack Light

PRODUCT DESCRIPTION:
Keep traditional fixture structure design, simple, good heat disspation with long life span. Lens has glass & PC optional.

APPLICATIONS
Indoor/Outdoor wall-mount applications. Building facade. Retail, commercial, industrial exteriors.

Specification Features
1. Rugged, die-cast housing with advanced thermal management system ensures reliability and durability.
2. Aluminum PCB with high thermal conductivity as chip carrier for faster cooling.
3. Luminaire comes standard mounting plate for quick and easy nstallation.
4. All adopt superior stainless steel bolts.
5. Emergency battery back-up optional.
6. Sensor accessory available: occupancy sensing with daylightcut-off and photocell (must order with wall pack extension accessory).

Description
Product Specification

Photometrics

	3000-5700K
Catalog No.	Rated Wattage (W)	Delivered Lumens (Im)
LEDBG30W002BS	27±5%	3900
LEDBG40W002BS	36±5%	5200
LEDBG50W002BS	44±5%	6500
LEDBG60W002BS	54±5%	7800
LEDBG80W002BS	72±5%	10400
LEDBG100W002BS/L	100±5%	13000
LEDBG120W002BS/L	108±5%	15600
LEDBG135W002BL	123±5%	17500

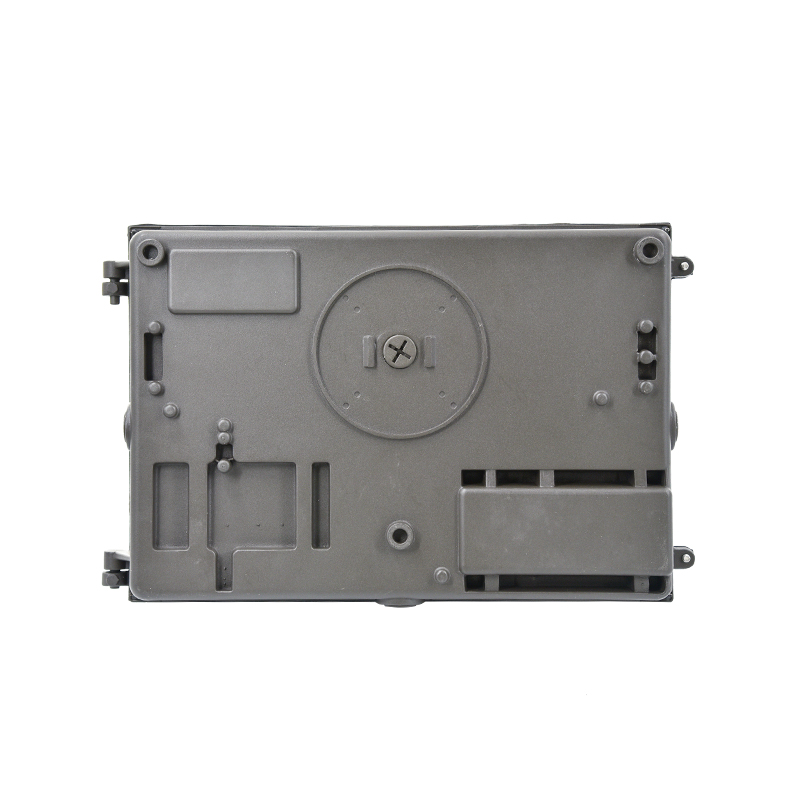

Product size

LED Wall Pack light Parameter table-DLC Premium

Item description	LEDBG30W002BS	LEDBG40W002BS	LEDBG50W002BS	LEDBG60W002BS	LEDBG80W002BS	LEDBG100W002BS	LEDBG100W002BL	LEDBG120WH2BS	LEDBG120W002BL	LEDBG135W002BL
Input voltage [VAC]	120-277	120-277	120-277	120-277	120-277	120-277	120-277	120-277	120-277	120-277
Input current [A]	0.10-0.27	0.13-0.36	0.16-0.45	0.20-0.54	0.26-0.72	0.33-0.90	0.33-0.90	0.40-1.09	0.40-1.09	0.45-1.22
Input wattage [W]	<30	40±5%	50±5%	60±5%	80±5%	100±5%	100±5%	120±5%	120±5%	135±5%
Input frequency [Hz]	50/60	50/60	50/60	50/60	50/60	50/60	50/60	50/60	50/60	50/60
Power factor	>0.90@220V	≥0.90@220V	≥0.90@220V	≥0.90@220V	≥0.95@220V	≥0.95@220V	≥0,95@220V	≥0.95@220V	≥0.95@220V	≥0.95@220V
Voltage [V]	72	72	72	36	36	36	36	36	36	36
Current(reference) [A]	0.38	0.5	0.61	1.5	2.0	2.5	2.5	3.0	3.0	3.42
Wattage(reference) [W]	<27	36±5%	44±5%	54±5%	72±5%	90±5%	90±5%	108±5%	108±5%	123±5%
Luminous flux [Lm]	3900@5000K	5200@5000K	6500@5000K	7800@5000K	10400@5000K	13000@5000K	13000@5000K	15600@5000K	15600@5000K	17500@5000K
Colour temperature [K]	3000-5700	3000-5700	3000-5700	3000-5700	3000-5700	3000-5700	3000-5700	3000-5700	3000-5700	3000-5700
Colour rendering index [Ra]	70	70	70	70	70	70	70	70	70	70
Lumen maintenance(2000h) [%]	L90> 36000	L9036000	L90>36000	L90>36000	L90> 36000	L90>36000	L90>36000	L90>36000	L90>36000	L90>36000
Average life [h]	>54000	>54000	>54000	>54000	>54000	>54000	>54000	>54000	>54000	>54000
Net weight [Kg]	3.1 Kg/set	3.1 Kg/set	3.1Kg/set	3.2Kg/set	3.3Kg/set	3.3Kg/set	4.2Kg/set	4.2Kg/set	4.2Kg/set	4.3Kg/set
Gross weight [Kg]	3.6Kg/set	3.6Kg/set	3.6Kg/set	3.7Kg/set	3.8Kg/set	3.8Kg/set	4.8Kg/set	4.8Kg/set	4.8Kg/set	4.9Kg/set
Dimensions [in]	14.219.137.12ln	14.219.137.12ln	14.21 9.137.12ln	14219.137.12ln	14.219.137.12111	14.21 9.137.12ln	18.239.067.87ln	14.219.137.12111	18.239.067.87ln	18.239.067.87ln
Ambient Temperature [ °C ]	-25°C-40°C
LED chip	CREE 2835
Material	ADC12+GLASS
Ambient tenperture	-40°C-85°C RH10%-95
