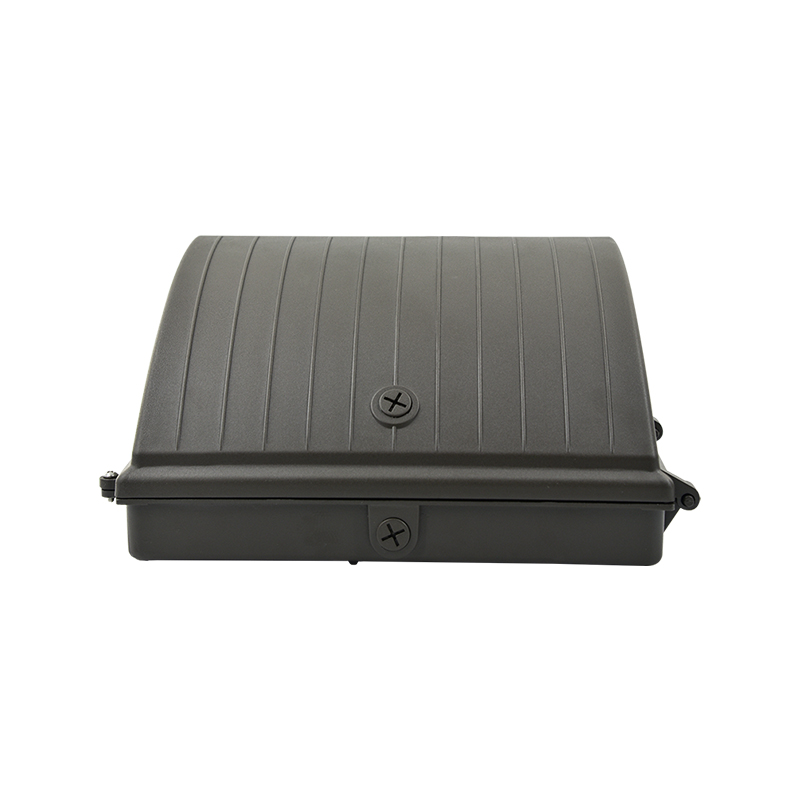

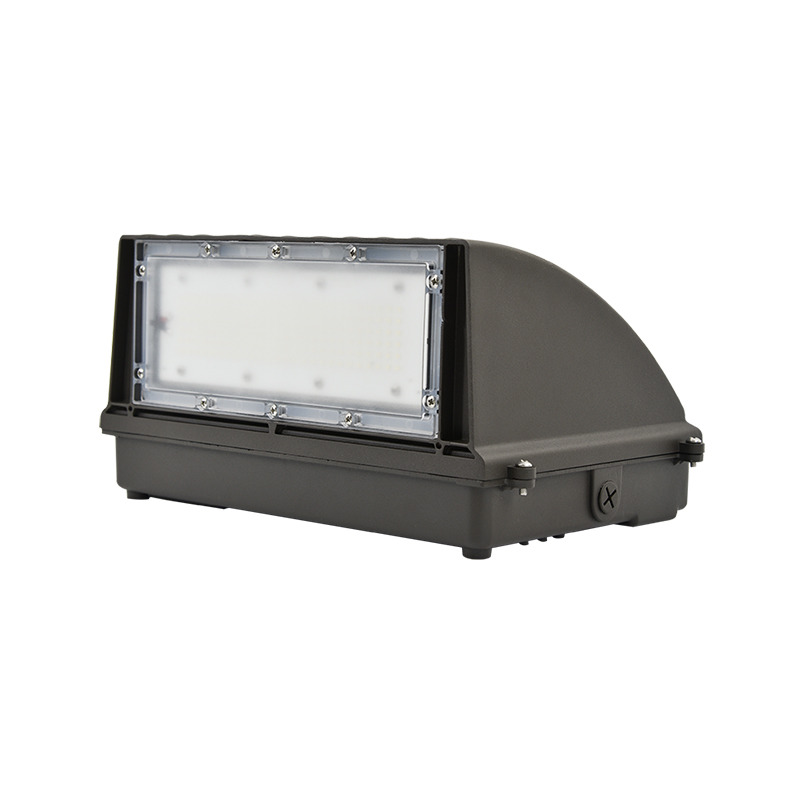

BG003-1 Good Heat Dissipation Led Wall Pack Light

PRODUCT DESCRIPTION:
Fixture is designed as the base and luminaire cavity two parts. Luminaire cavity waterproof & dustproof, proper as individual part to replace the HPS wallpack cavity.
Keep traditional fixture structure design, simple, good heat disspation with long life span. Lens has glass & PC optional.

APPLICATIONS
Indoor/Outdoor wall-mount applications. Building facade. Retail, commercial, industrial exteriors.

Specification Features
1. Rugged, die-cast housing with advanced thermal management system ensures reliability and durability.
2. Aluminum PCB with high thermal conductivity as chip carrier for faster cooling.
3. Luminaire comes standard mounting plate for quick and easy nstallation.
4. All adopt superior stainless steel bolts.
5. Emergency battery back-up optional.
6. Sensor accessory available: occupancy sensing with daylightcut-off and photocell (must order with wall pack extension accessory).

Description
Product Specification

Photometrics

	3000-5700K
Catalog No.	Rated Wattage (W)	Delivered Lumens (Im)
LEDBG30W003S	30±5%	3900
LEDBG40W003S	40±5%	5200
LEDBG50W003S	50±5%	6500
LEDBG60W003S	60±5%	7800
LEDBG80W003S	80±5%	10400
LEDBG100W003S/L	100±5%	13000
LEDBG120W003S/L	120±5%	15600
LEDBG135W003L	135±5%	17500

Product size

LED Wall Pack light Parameter table-DLC Premium

I Item description	LEDBG30W003S	LEDBG40W003S	L£DBG50W003S	LEDBG60W003S	L£DBG80W003S	LEDBG100W003S	L£DBG100W003L	LHDBG120W003S	LHDBG120W003L	LEDBG135W003L I
Input voltage [VAC]	120-277	120-277	120-277	120-277	120-277	120-277	120-277	120-277	120-277	120-277
Input current [A]	0.10-0.27	0.13-0.36	0.16-0.45	0.20-0.54	0.26-0.72	0.33-0.90	0.33-0.90	0.40-1.09	0.40-1.09	0.45-1.22
Input wattage [W]	<30	40±5%	50±5%	60±5%	80±5%	100±5%	100±5%	120±5%	120±5%	135±5%
Input frequency [Hz]	50/60	50/60	50/60	50/60	50/60	50/60	50/60	50/60	50/60	50/60
Power factor	≥90	≥90	≥90	≥90	≥90	≥0.95@220V	≥0.95@220V	≥0.95@22OV	≥0.95@22OV	≥0.95@220V
Voltage [V]	72	72	72	36	36	36	36	36	36	36
Current(reference) [A]	0.38	0.5	0.61	1.5	2.0	2.5	2.5	3.0	3.0	3.42
Wattage(reference) [W]	<27	36±5%	44+5%	54±5%	72±5%	90±5%	90±5%	108±5%	108±5%	123±5%
Power efficiency	90%	90%	90%	90%	92%	92%	92%	92%	92%	92%
Luminous flux [Lm]	390005000K	5200@5000K	6500@5000K	7800@5000K	10400@5000K	13000@5000K	13000@5000K	15600@5000K	15600@5000K	17500@5000K
Colour temperature [K]	3000-5700	3000-5700	3000-5700	3000-5700	3000-5700	3000-5700	3000-5700	3000-5700	3000-5700	3000-5700
Colour rendering index [Ra]	70	70	70	70	70	70	70	70	70	70
Lumen maintananca(2000h) [%]	L90> 36000	L90>36000	L90> 36000	L90> 36000	L90> 36000	L90> 36000	L90> 36000	L90> 36000	L90> 36000	L90>36000
Average life [h]	>54000	>54000	>54000	>54000	>54000	> 54000	>54000	>54000	>54000	>54000
Net weight [Kg]	3.1Kg/set	3.1Kg/set	3.1Kg/set	3.2Kg/set	3.3Kg/set	3.3Kg/set	4.2Kg/set	3.3Kg/set	4.2Kg/set	4.3Kg/set
Gross weight [Kg]	3.6Kg/set	3.6Kg/set	3.6Kg/set	3.7Kg/set	3.8Kg/set	3.8Kg/set	4.8Kg/set	3.8Kg/set	4.8Kg/set	4.9Kg/set
Dimensions [in]	14.219.137.12in	14.219.137.12in	14.219.137.12in	14.219.137.12in	14.219.137.12in	14.21 9.137.12in	18.239.067.87in	14.219.137.12in	18.239.067.87in	18.239.067.87in
Ambient Temperature [ °C ]	-25°C-40°C
LED chip	CREE2835
Material	ADC12
Ambient tenperture	-40°C-85°C RH10%-95%
